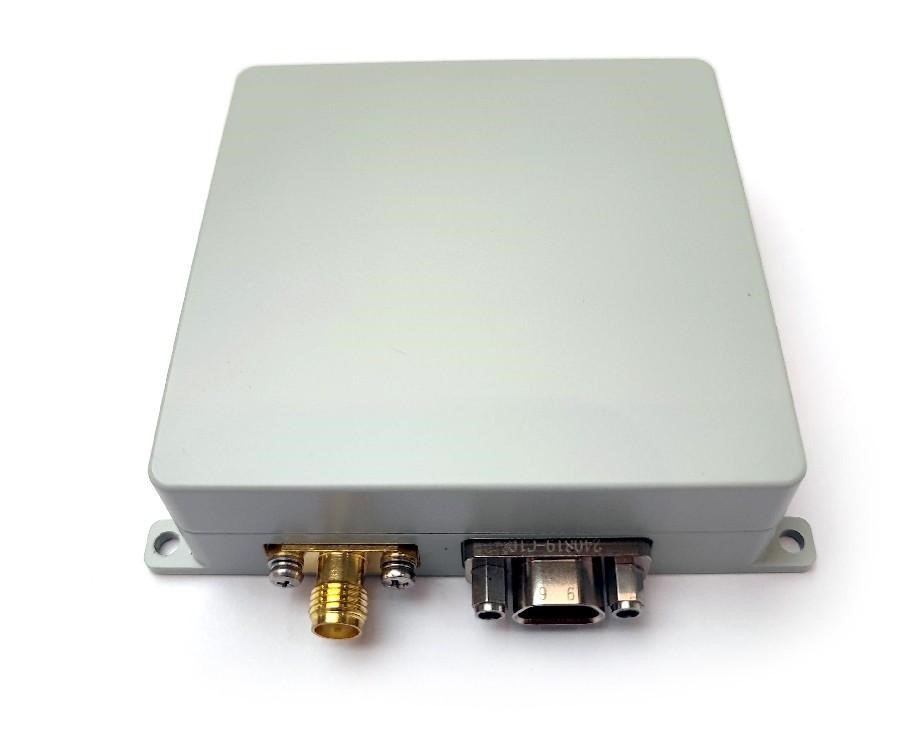

AP-RF6-4C-S ultra-miniaturization anti-interference all-in-one machine is a satellite navigation anti-interference all-in-one machine for the needs of small and medium-sized UAV and other industries, which supports the anti-broadband interference ability and positioning function of Beidou B1 and GPS frequency point signals. Internal integrated antenna array, anti-jamming components and satellite navigation receiver, with miniaturization, lightweight, and low cost characteristics.
1. RNSS signal reception
1) With the function of receiving RNSS signals from navigation satellites such as Beidou-3 and GPS
2) Civil code: B1C, B1I, and GPS L1
2. Anti-interference function
With the anti-interference function of B1 and L1 frequency points, it can suppress narrowband interference, broadband interference, pulse interference, sweep interference, Gaussian interference and other suppression interference
3. Software upgrade
With the software upgrade function, you can upgrade the anti-interference module and the receiver module through the serial port
4. System self-inspection
It has self-check and status inspection functions
5. Anti-burning function
The continuous W power is not less than 10W
1. Frequency of work
B1I：1561.098MHz；L1/B1C：1575.42MHz
2. Anti-interference performance
Unidirectional interference ≥ 95dBc
Two-direction interference ≥ 85dbc
Three-direction interference ≥ 80dBc
3. Positioning accuracy
Horizontal≤1.5 meters
4. Speed measurement accuracy
0.2 m / second (95%)
5. Time-giving accuracy
≤100ns（95%）
6. Operating voltage
The input voltage is 5 to 17 V
7. Power consumption
≤6W
